1) Products Description:

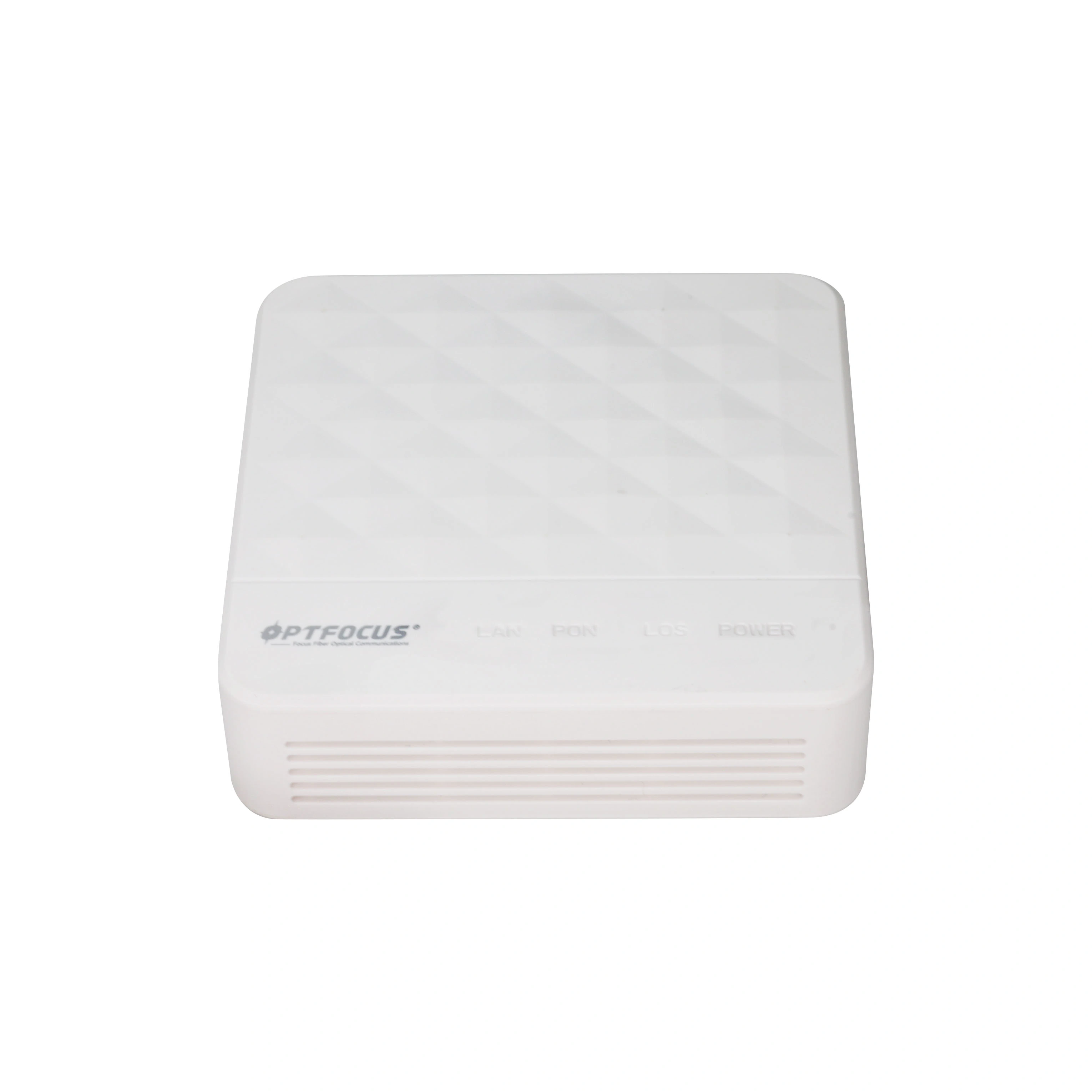

1GE Ethernet ports XPON ONU for FTTH solution
OFSE611 is EPON ONU terminal devices designed for fulfilling FTTx and triple play service demand of fixed network operator or cable operators.This box is based on the stable and mature Gigabit EPON technology, which has high ratio of performance to price, and the technology of Layer 2 Ethernet switch. It is highly reliable and easy to maintain, with guaranteed QoS for different service.
|1 EPON interface,SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s rate Fiber type:SC/UPC|
Optical power:0~4 dBm Sensitivity:-27 dBm
safety: ONU authentication mechanism
|Wavelength(nm)||TX 1310nm,RX 1490nm|
|Fiber connector||SC/UPC connector (SC / APC optional)|
|Down-link data interface||1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface|
|Indicator LED||4 pcs|
|DC supply interface||input+12V 0.5A|
|PWR||green||ON:successfully connect with power OFF:fail to connect with power|
|PON||green||ON:ONU port Link link correctly Flicker: PON registering|
OFF:ONU ports link link faulty
|LAN||green||ON: Link up correctly Flicker: data is transmitting OFF: link down faulty|
|LOS||red||Flicker: fail to connect with PON port|
OFF: detected fiber to input
- Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.
- Support DBA reporting mechanism request
- Support OAM (Link, Test, Loop back)maintenance function defined IEEE802.3ah
- Support the remote upgrade and download
- Support to save configured parameters if power down
- Support to configure the work mode at the user port
- Support MDI-MDIX automatic-detection at the user port.
- Support access authentication based on serial number
- Support access authentication based on MAC address
- Support 802.1Q VLAN
- Support rich QinQ VLAN functions and IGMP Snooping
- Support traffic rule to modify the related priority.
- Support to restore the factory settings
- Support the remote reset and reboot
- Support dying gasp outage alarm
- Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.
3) Product details:

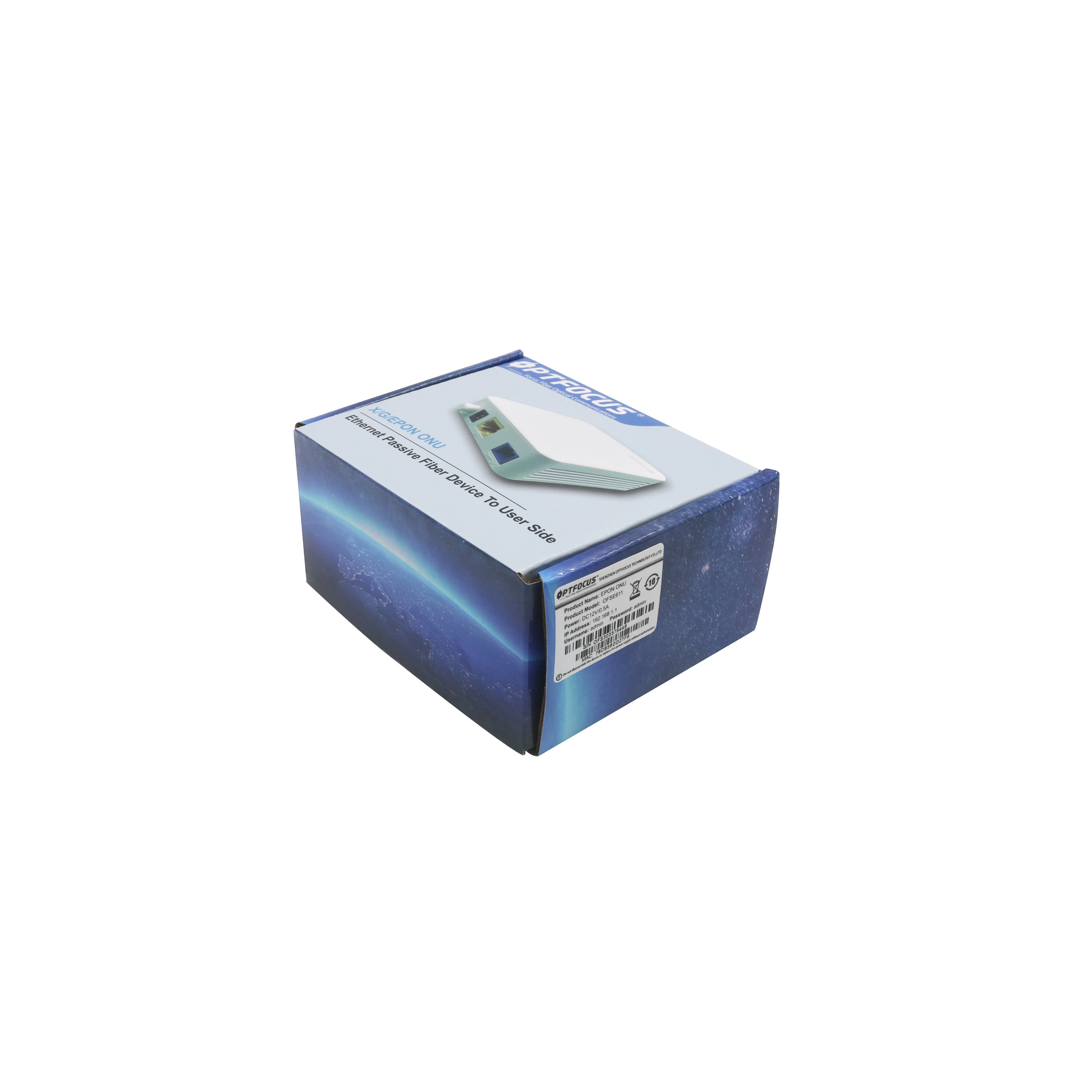

Optofucs brand packing:
1 PCS/Box, 90Boxes/CTN, 48*43*38CM, 17.2KG/CTN
1 PCS/Box, 80Boxes/CTN, 48*43*38CM, 15.6KG/CTN
5) Related products model:
XPON: 4GE+USB+2POTS+AC(2.4+5G) WIFi
6) Our merit:
1. Remote or even face to face technical support;
2. Support OEM/ODM service and cooperated as brand agent;
3. Highly cost-effective,quality stable and reliable;
4. 10 years experiences of manufacturing fiber optical equipment. also contents high quality controlled producing and testing system;
5. Exclusive exquisite products design;
6. Abundant production catalog
7. Had become Famous brand in Bangladesh, America, Romania, Hungury and some south America for years.
8. Technical sales team for in-time before and after sale service.
