1GE GPON ONU ZTE chipset high quality brand new OEM&ODM 1port GPON ONU
1GE Ethernet ports EPON ONU for FTTH solution

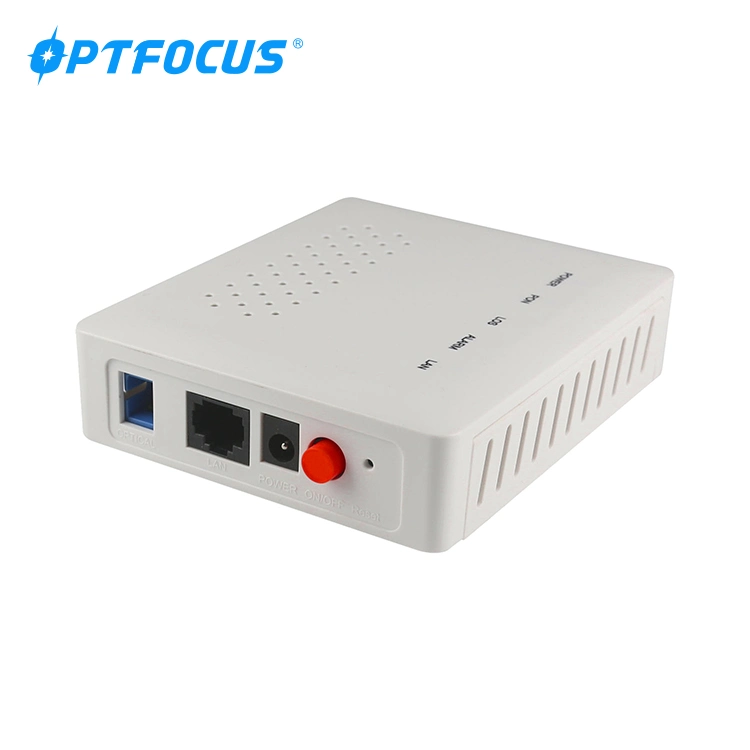

OFSG511 is GPON ONU terminal devices designed for fulfilling FTTx and triple play service demand of fixed network operator or cable operators.This box is based on the stable and mature Gigabit GPON technology, which has high ratio of performance to price, and the technology of Layer 2 Ethernet switch. It is highly reliable and easy to maintain, with guaranteed QoS for different service.

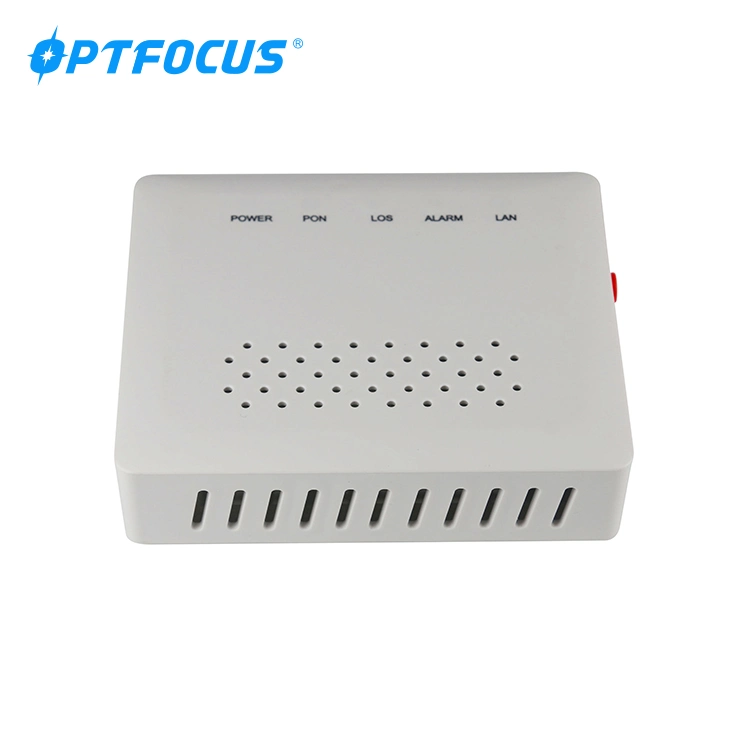

Definition of indicator LED
l Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.
l Completely compatible with GPON international standard IEEE802.3ah/802.3-2005
l Support China Telecom GPON CTC3.1 standard and expand OAM
l Support DBA reporting mechanism request
l Support OAM (Link, Test, Loop back)maintenance function defined IEEE802.3ah
l Support the remote upgrade and download
l Support to save configured parameters if power down
l Support to configure the work mode at the user port
l Support MDI-MDIX automatic-detection at the user port.
l Support access authentication based on serial number
l Support access authentication based on MAC address
l Support 802.1Q VLAN
l Support rich QinQ VLAN functions and IGMP Snooping
l Support traffic rule to modify the related priority.
l Support to restore the factory settings
l Support the remote reset and reboot
l Support dying gasp outage alarm
l Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.
1 GPON interface,SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s rate Fiber type:SC/UPC
Optical power:0~4 dBm Sensitivity:-28 dBm
safety: ONU authentication mechanism
TX 1310nm,RX 1490nm
SC/UPC connector (SC / APC optional)
Down-link data interface
1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface
DC supply interface
1. Is there a minimum order quantity?
No, you can feel free to order any quantity of any product.
2. Do your products come with warranty?
Yes,we provide 1 year warranty for all our products from the date of shipment.
3. How much charge voltage can reach?
Battery charging voltage should be 13.8V only high charging and low cutoff 10V.
4.Is your switch customizable for rack or DIN rail mountable?
Yes, of course, but we have the MOQ. Please contact with out server for details.
5.Does your network management switch support ring redundancy?
With STP (Spanning Tree) function, ring redundancy is supported. The network management type we produce can support this function.
