Gpon Xpon Dual-Mode ONU with CATV for FTTH Compatible with Huawei/Zte/Fiberhome

Product Overview

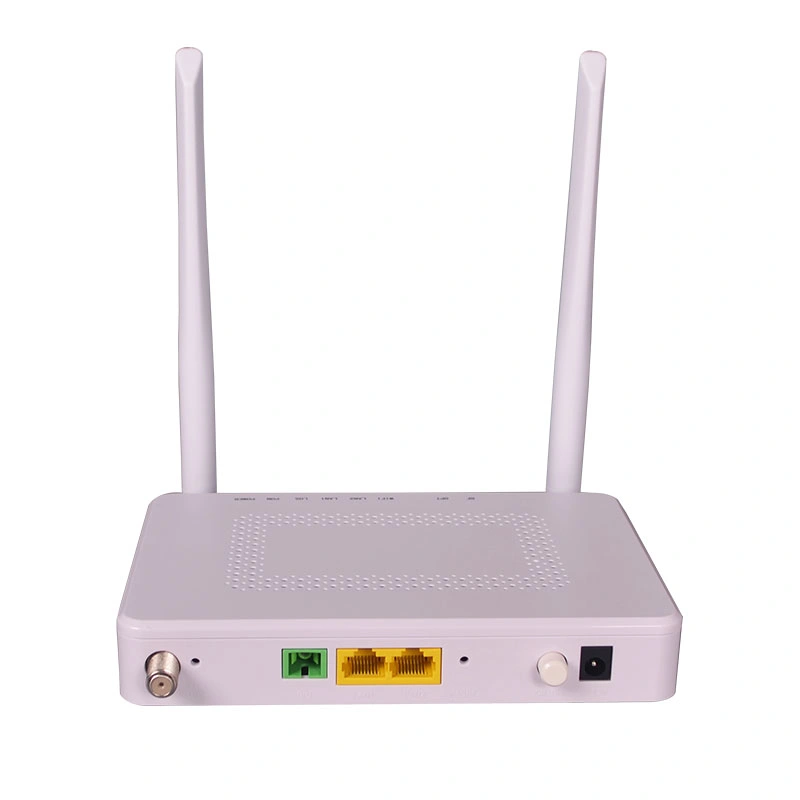

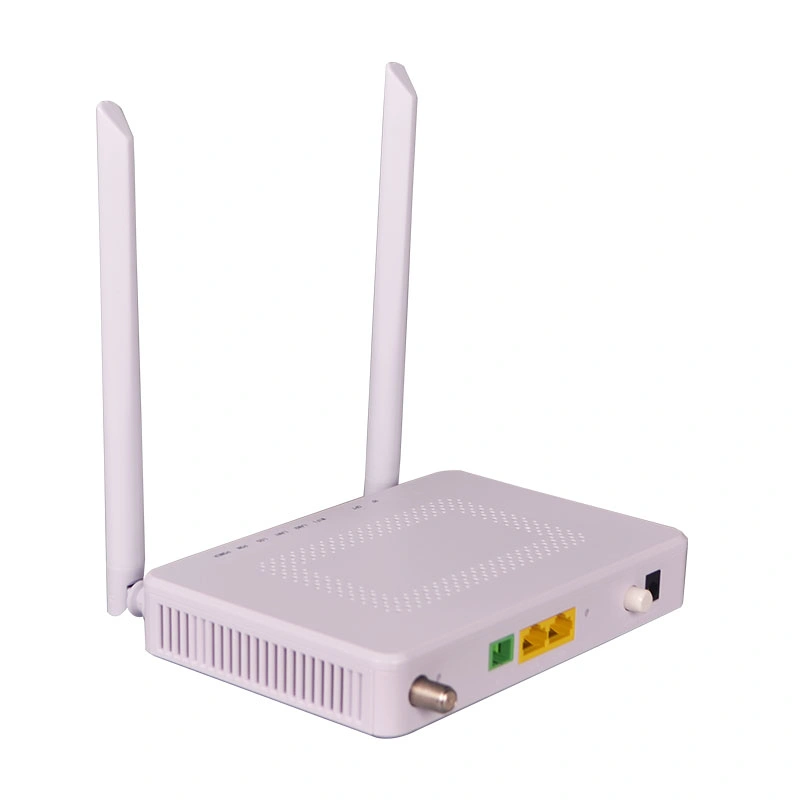

ONT-2GF-RFW is a residential gateway device with routing functions for XPON ONU and LAN Switch for residential and SOHO users, which is in line with ITU-T G.984 and IEEE802.3ah.
The uplink of ONT-2GF-RFW provides one PON interface, while downlink provides two Ethernet and one RF interfaces. It can realize optical access solutions such as FTTH (Fiber To The Home) and FTTB (Fiber To The Building). It fully integrates the reliability, maintainability and security design of carrier-grade equipment, and provides customers with the last kilometer of broadband access to residential and corporate customers.

Hardware Specifications

PON Interface

Interface TypeSC/PC, CLASS B+
RateUplink: 1.25Gbps; Downlink: 2.5Gbps
User-Side Interface1*10/100BASE-T;1*10/100/1000BASE-T; 1*RF interface
Size (Mm)167(L)x118(W)x30(H)
Maximum Power Consumption<8W
Weight200g
Operating EnvironmentTemperature: -10°C ~ 55°C
Humidity: 5% ~ 95% (no condensation)
Power SupplyExternal Power Adapter 12V/1A
Power Adapter Input100-240V AC, 50/60Hz
Power Interface Sizemetal inner diameter: φ2.1±0.1mmouter diameter : φ5.5±0.1mm; length: 9.0±0.1mm
WLAN ModuleInternal and external dual antenna, antenna gain 5db, antenna power 16~21dbm
Support 2.4GHz, 300M transmission rate

LED

 StateColorDescriptions
PWRSolidGreenNormal
OffNo power
PONSolidGreenONU is authorized
FlashONU is Registering
OffONU is not authorized
LOSSolidRedAbnormal
FlashIn diagnostic mode
OffNormal
LAN 1SolidGreenLink UP
FlashActive(Tx and/or Rx)
OffLink down
LAN 2SolidGreenLink UP
FlashActive(Tx and/or Rx)
OffLink down
WIFIFlashGreenNormal
OffError/WLAN disable
OPTSolidGreenCATV optical signal reception is normal
OffCATV optical signal power is abnormal or faulty
RFSolidGreenCATV optical machine output level is normal
OffCATV optical machine output level is abnormal or faulty

Optical machine index parameters

 projectunitperformance parametersnote
Optical parametersWavelength of lightnm1200~1600
Optical connector form SC/APCOther customizable
Receiving light power rangedBm-18~0Other customizable
Optical AGC control accuracydBm-15~0Other customizable
Radio frequency (rf) parametersFrequency rangeMHz47~1000
Output rf impedanceΩ75
Output flatnessdB±1.5
Number of RF ports 1
Nominal output leveldBuv≥(75±1.5)Other customizable
Output reflection lossdB>14
MERdB>31@-15dBmsee*note1
>34@-9dBm
Link indicatorsC/NdB>51GYT143-2000
CTBdBc>65
CSOdBc>61
Working temperatureºC-10~+60
Storage temperatureºC-40~+80
Working humidity 20%~90%
Store humidity 10%~95%
Dustproof requirements <YD/T1475-2006>
MTBFH40000H
note1:The test conditions are 59 analog channels and 38 digital channels.

Software Characteristic(GPON)

Standard ComplianceComply with ITU-T G.984/G.988
Comply with IEEE802.11b/g/n
Comply with China Telecom/China Unicom GPON Interoperability Standard
GPONSupport for the ONT registration mechanism
Support DBA
Support FEC
Support link encryption
Supports the maximum effective transmission distance of 20 km
Support long illuminating detection and optical power detection
MulticastIGMP V2 Proxy/Snooping
WLANSupport WPA2-PSK/WPA-PSK encryption
Support client isolation
Support for 4 * SSID
Support for 802.11 BGN mode
Support maximum rate of 300M
Management & MaintenanceSupport web management
Support CLI/Telnet management
Support port loopback detection
CompatibilitySupport the connection with the business competitor's OLT and its proprietary protocols, including Huawei, H3C, ZTE, BDCOM, RAISECOM, and so forth.


Software Characteristic(EPON)

Standard ComplianceComply with IEE802.3ah EPON
Comply with China Telecom/China Unicom EPON Interoperability Standard
EPONSupport for the ONT registration mechanism
Support DBA
Support FEC
Support link encryption
Supports the maximum effective transmission distance of 20 km
Support long illuminating detection and optical power detection
MulticastIGMP V2 Proxy/Snooping
WLANSupport WPA2-PSK/WPA-PSK encryption
Support client isolation
Support for 4 * SSID
Support for 802.11 BGN mode
Support maximum rate of 300M
Management & MaintenanceSupport web management
Support CLI/Telnet management
Support port loopback detection
CompatibilitySupport the connection with the business competitor's OLT and its proprietary protocols, including Huawei, H3C, ZTE, BDCOM, RAISECOM, and so forth.
