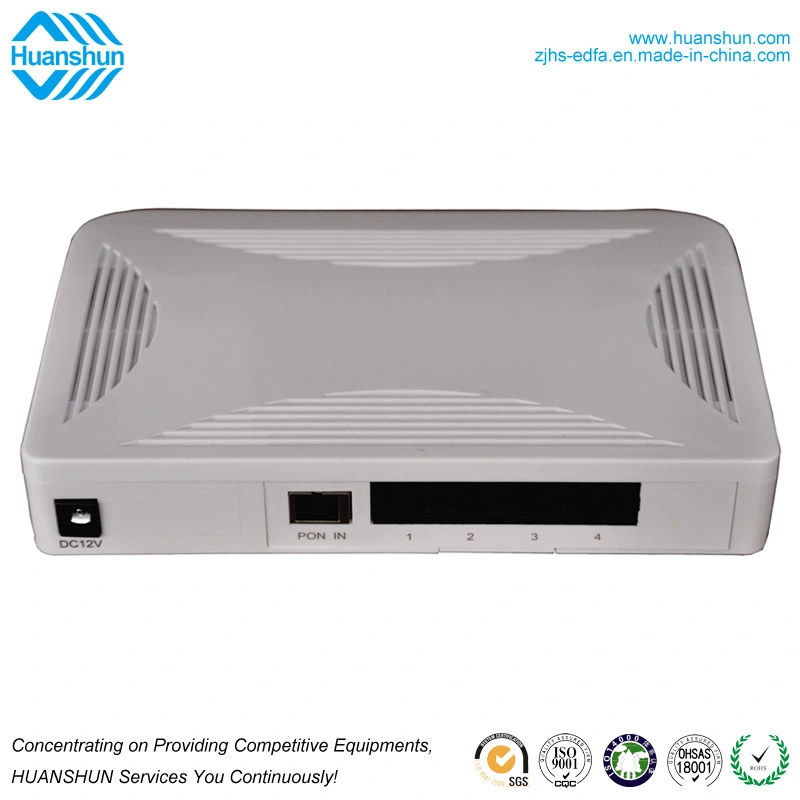

4 Adaptive Ethernet Interfaces FTTH Gpon ONU Fiber Home ONU

GOOD NEWS: this item is under Time Limit Promotion(price based on real-time exchange rate), now you can get it by only $20.00/unit(our cost price, with>20% cut off of original offer)!!! 1.Summary    HSO1(2)004(2)/W/V

Featured Products

GOOD NEWS: this item is under Time Limit Promotion(price based on real-time exchange rate), now you can get it by only $20.00/unit(our cost price, with>20% cut off of original offer)!!!
    HSO1(2)004(2)/W/V/G/P/X series products are EPON, GPON system End-User Devices, through EPON, GPON Passive Optical Network to terminate the Service which transmitted from OLT(Optical Line Terminal). The Device works with OLT, and so ONU can provide various Broadband Services to the Connected Users.
    It meets the "YD/T 1475-2006 Access Network Technology, Ethernet Based Passive Optical Network (EPON)" and "China-Telecom EPON Equipment Technical Requirements" in the corresponding ONU Equipment Requirements, and obtains the China National Industry and Informatization Departments Telecommunications Equipment Access Licenses.
    This Device meets the FTTX & FTTH Applications of Broadcast Two-Way Network, supports the Mainstream Manufacturers OLT Hybrid Network, Minimizing Saving the Operator's Cost of Building The Cable network.
    HSO Model Suffix"10"means EPON ONU,"20"means GPON ONU, next suffix"XX"directly means Network Ports Number, for example"02"means 2 ports;"04"means 4 ports, next suffix"W"means with WIFI function;"V"means with VOIP function, "G" means the Gigabit Ethernet Port, the bottom suffix "P" means General PVC Film, "X" means Subminiature Structure.

√ Host Device Performance passed China National Industry and Informatization Departments Inspection & obtains Telecommunications Equipment Access Licenses;
√ Whole Device's Performance passed EMC and Safety Detection and obtain National Mandatory Product of China(2015011608758829);
√ ONU support EPON, 10G EPON or GPON, Compatibility with Mainstream OLT Firms;
√ ONU has 2 or 4 Network Ports, Bandwidth with FE or GE, with WIFI or VOIP Functions;

3.Technical Specifications
Optical CharacteristicsWorking WavelengthnmTX1310, RX1490
Optical Transmit PowerdBm-1~+40~+6
Optical Receiving SensitivitydBm≤-26.5≤-28
Optical Adapter/SC/UPC
PortsUser Ethernet PortsPcs2(10/100Mbps)4(10/100Mbps, suffix with"G"10/100/1000Mbps)
WIFI/VOIP/suffix"W"means with WIFI function;"V"means with VOIP function

Power Supply/ConsumptionV/WExternal Power Adapter AV110~255V→DC12(1A or 0.5A)/5
Working/Storage TemperatureºC-25~55/ -40~75(Humidity8~80%)
Operative Standards/National Informatization Department EPON, GPON Interworking Protocol(IP), IEEE 802.3/802.3ah


5.Manufacturing Process

6.About Hunashun Network

    Zhejiang Huanshun Network Technology Co., Ltd. was founded in early 1988, We're located in the birthplace of seven thousand years ancient culture - "Yuyao,Ningbo" which has the reputation of "China Plastic Kingdom Mold Hometown". The registered capital of the company is 8 million dollar, and the employee is 100.
    Since the establishment of the company in the past 30 years, our company has been working on R&D and production of photoelectric transmission equipment, mainly are: Optical Transmitter, Optical Receiver and Optical Amplifier. With the transformation of CATV network digitalization, two-way transformation and the construction of the next generation of CATV network, the main products of our company are upgrading and upgrading continuously.
    The latest generation of our FTTH products are High Power Multiple Outputs (8-64Ways) Optical Amplifier,
 FWDM & WDM Modular Optical Amplifier, 1550nm Receiving-Type Ultra Low Power Optical Receiver, FTTH ONU (WIFI)+CATV Receiving Double-Fibers/Single-Fiber(WDM) Optical Terminal, FTTH ONU or WIFI E/GPON Optical Terminal, EPON OLT+EYDFA Outdoor Passive Optical Network Integrated Terminal Device.
    The company has been adhering to the Core Values of "Thanksgiving, Innovation, Pragmatism and Win-Win", and is committed to become a Outstanding Comprehensive Provider of Cable Network Integrated Services, Aiming at building the First Brand of CATV Access Network Application Service. In the near future, we'll move forward to "Smart Community, Smart Pension, Smart Medical Care" area, to bulid the Cable Network Based Smart Community Service System.
