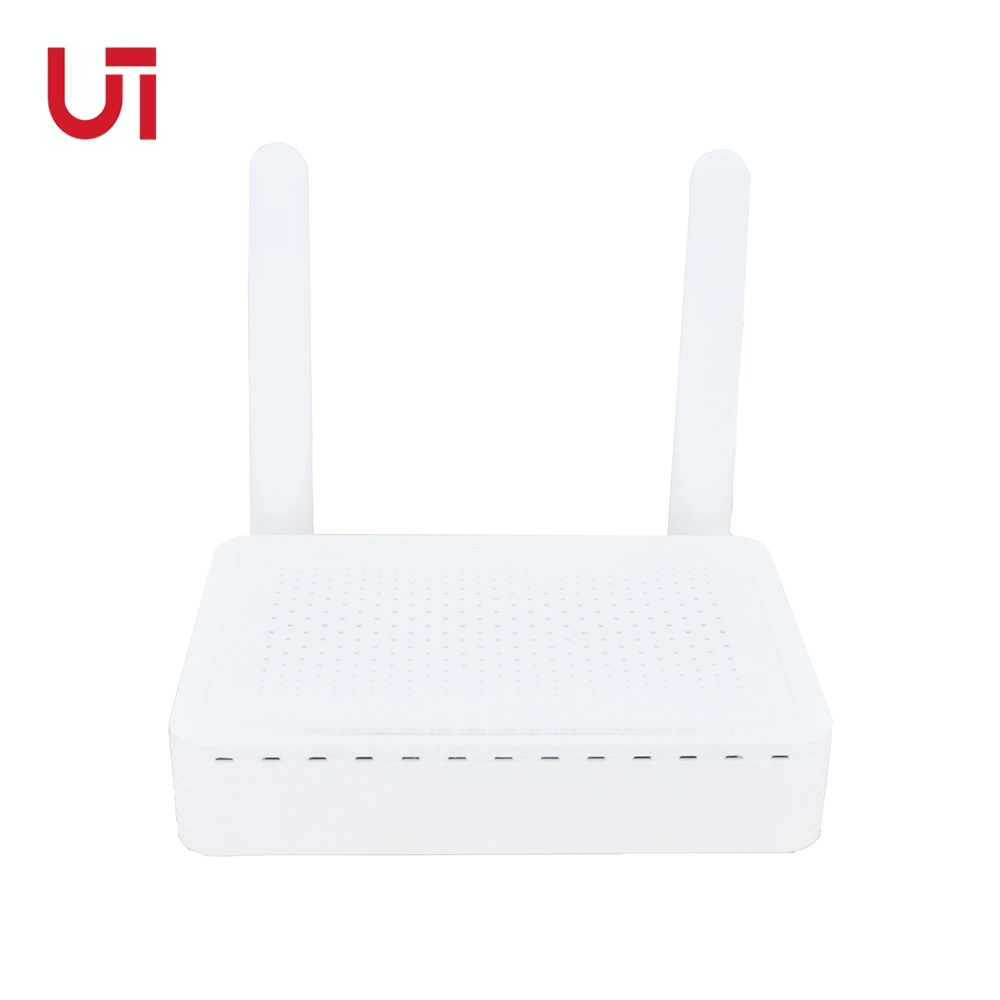

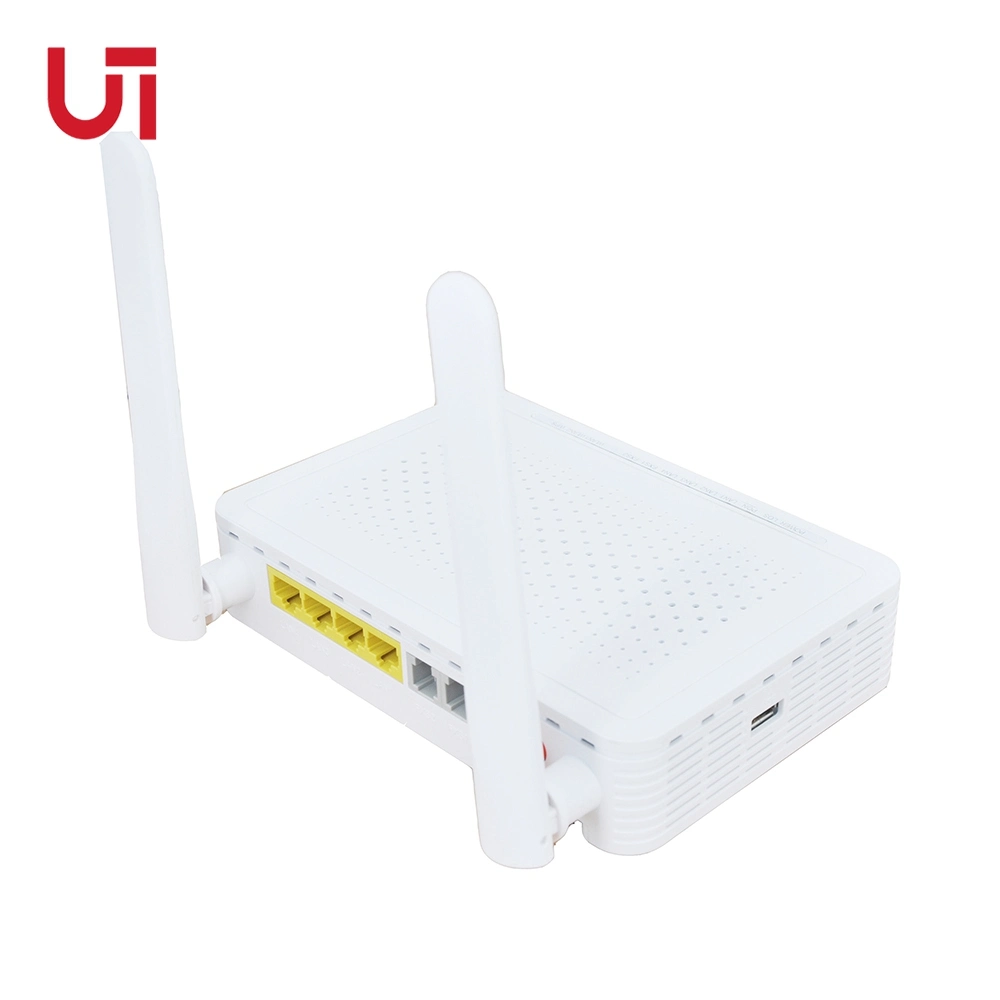

UT-GP4484,4GE+2POTS+WIFI2.4&5.8G dual band OEM gpon onu wifi high speed epon gpon onu
GPON ONU(UT-GP4484) is designed and manufactured by Shenzhen UT-King Technology Co.,Ltd, a next-generation Gigabit Passive Optical Network (GPON) terminal, ideal for Fiber to The Home solution. It's an incredibly robust device allowing users to access high-speed internet connections via its GPON port and share it with a Gigabit Ethernet port. With the transmission rates of up to 2.488Gbps, one GPON port and one Gigabit Ethernet port, It provides high-performance forwarding capabilities to ensure smooth VoIP, HD video streaming experiences.
Main Features:
- Complies with ITU-T G.984.1, ITU-T G.984.2, ITU-T G.984.3 and ITU-T G.984.4 provides comprehensive GPON network compatibility
- Downstream rates of up to 2.488Gbps and upstream rates up to 1.244Gbps
- Fiber access and gigabit port provide incredibly fast transfer speeds
- Supports OMCI (ONT Management Control Interface) remote management
Remark:
1. Please contact us if you want to buy sample to test first.
2. The sample fee will be returned when you place the bulk order
.
| Model No. | UT-GP4484 |
| Interface | 1 *SC/UPC Port; 4 *10/100/1000Mbps RJ45 Port; 2 *WIFI(2T2R, 802.11b/g/n for 2.4GHz with 300Mbps, 802.11ac for 5.8GHz with 866Mbps,two external antenna) 2 *FXS RJ11 Port |
| Chipset | ZTE, ZX279128 |
| Data Rate & Wavelength | Upstream:1.244Gbps, 1310nm Downstream:2.488Gbps, 1490nm |
| Distance | 0~ 20Km Max |
| External Power Supply | DC 12V/1.5A |
| Dimensions (Length*Width*Height) | 205mm×135mm×35mm |
| Weight (Full-Loaded) | ≤0.5kg |
| Working temperature | 0°C~40°C |
| Storage temperature: | -40°C~70°C |
| Relative humidity: | 10%~90%, non-condensing |
