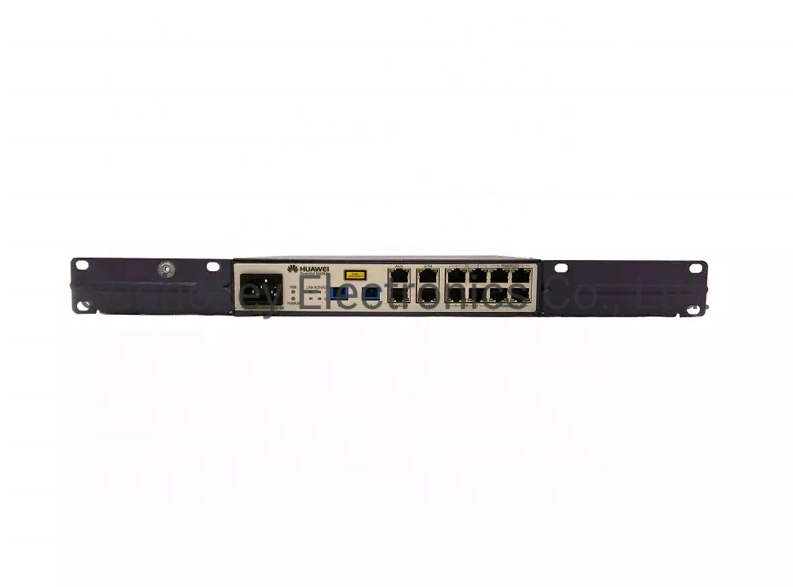

HUAWEI Optical Network Unit SmartAX MA5621A GPON/EPON ONU

Product Description

SmartAX MA5621A Power Grid ONUs

Ruggedized Optical Networking Units (ONUs) for automated meter reading in Smart Grid networks. MA5621 and MA5621A ONUs enable remote data collection and video monitoring systems; also suitable for broadband access for high-speed Internet or HDTV for multiple dwelling customers.

Downstream ports support GE or FE connections, with up to 4 x RS485 or RS232 interfaces for connecting to PCs, ammeters, or concentrators. Upstream GPON support complies with ITU G.984 standards.

Anti-electromagnetic interference enclosure, shock resistance, and 6 kV surge protection provide high reliability, making MA5621 Series ONUs an excellent choice for Smart Grid power systems.

Support automatic meter-reading Smart Grid applications in multiple dwelling and commercial properties with Huawei SmartAX MA5621 and MA5621A Optical Networking Units

  • Full-protection capabilities for PON networks with Type B, Type C, and Type D protection, dual upstream PON ports, and xPON hand-in-hand networking protect against multi-point failures
  • Industrial-grade design includes sealed cast aluminum enclosure that protects in temperatures ranging from -40°C to 85°C, provides shock resistance and anti-electromagnetic interference
  • Built-in 6 kV surge protection
  • Highly efficient operations, administration, and maintenance with one-stop deployment, plug and play, automatic configuration, remote monitoring, and maintenance of devices
Specifications


MA5621

MA5621A

Dimensions (H x W x D)

44.4 mm x 235 mm x 180 mm

43.6 mm x 250 mm x 180 mm

Operating

Environment

-40°C to +85°C

5% RH to 95% RH

-40°C to +55°C

5% RH to 95% RH

Power

AC: 220V/110V

DC: -12V/-24V/-48V

AC: 220V/110V

Network-side Ports

·2 x EPON

·1 x GPON

User-side Ports

4 x FE + 4 x RS485/RS232

4 x FE + 2 x RS485

Surge Protection

Power port: 6 kV

GE: 6 kV

Power port: 6 kV

GE: 6 kV

POTS: 4 kV

Weight

0.5 kg

1.5 kg
