Products Description

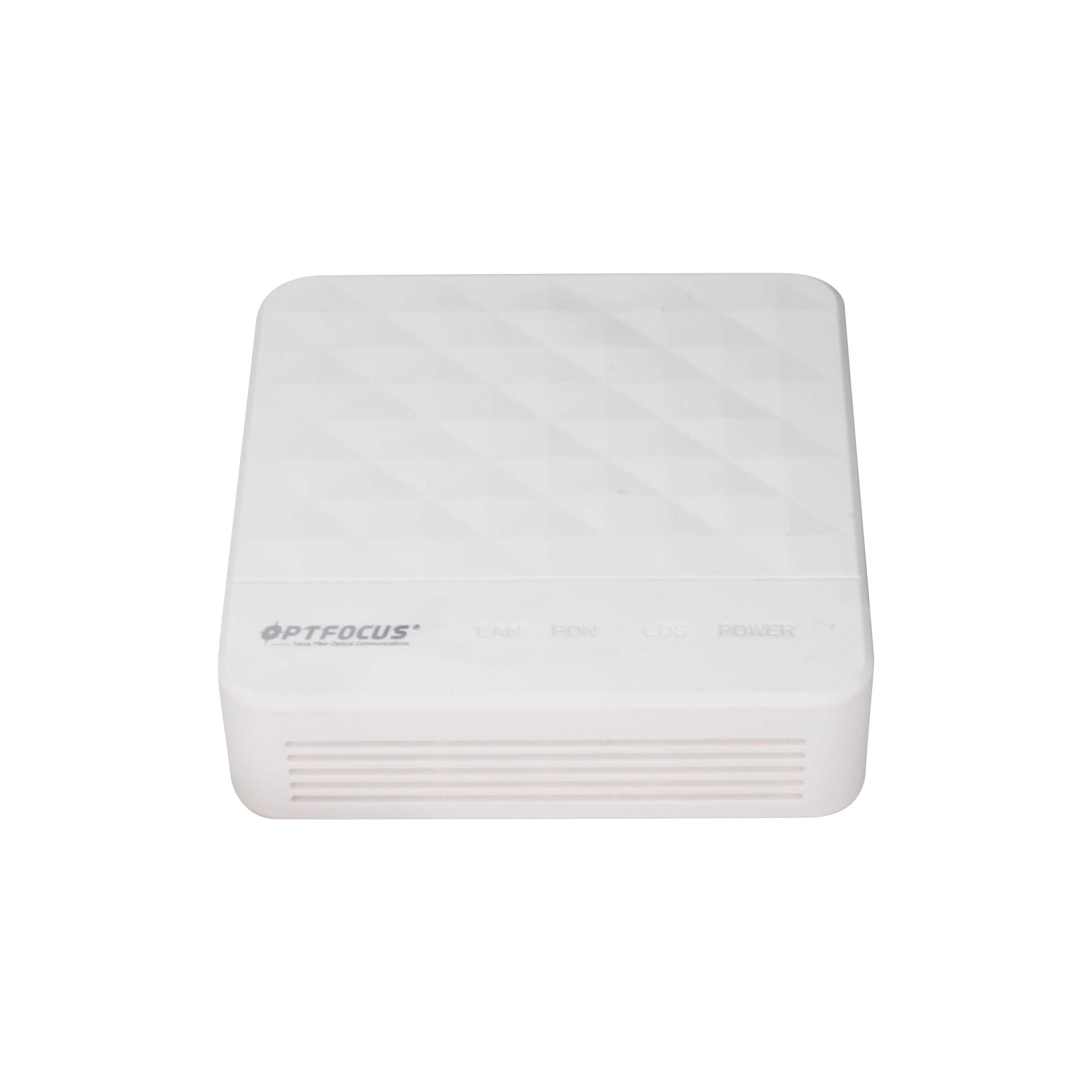

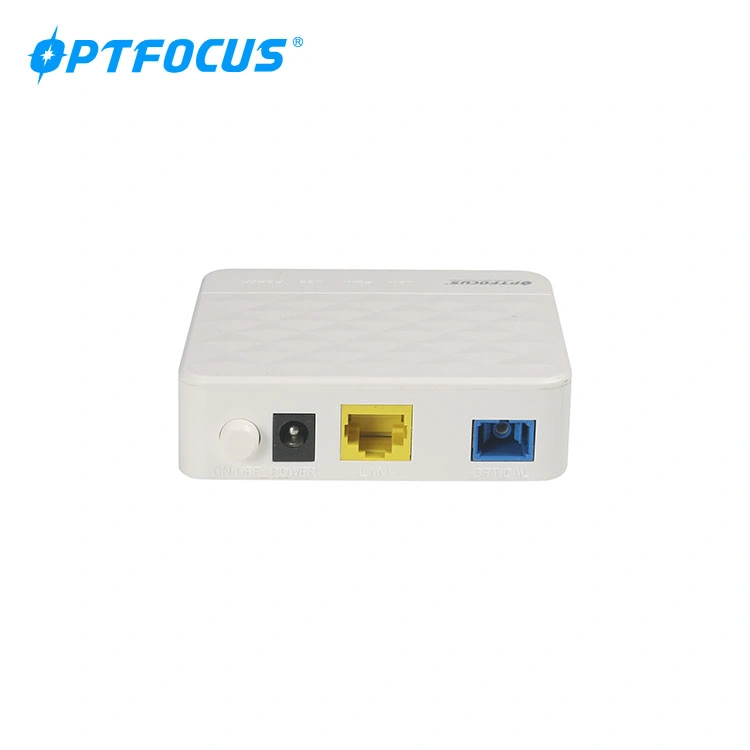

1GE Ethernet ports GPON ONU for FTTH solution
| Tech parameters | description |
Up-link interface | 1 EPON interface,SC single mode single fiber RX 1.244 Gbits/s rate and TX 1.244 Gbits/s rate Fiber type:SC/UPC Optical power:0~4 dBm Sensitivity:-27 dBm safety: ONU authentication mechanism |
| Wavelength(nm) | TX 1310nm,RX 1490nm |
| Fiber connector | SC/UPC connector (SC / APC optional) |
| Down-link data interface | 1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface |
| Indicator LED | 4 pcs |
| DC supply interface | input+12V 0.5A |
| Power | ≤5W |
| Operating temperature | -5~+55ºC |
| Humidity | 10~85%(non-condensation) |
| Storage temperature | -30~+70ºC |
| Dimension(MM) | 85*85*28mm(mainframe) |
| Weight | 0.2Kg(mainframe) |
1) Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.
2) Support DBA reporting mechanism request
3) Support OAM (Link, Test, Loop back)maintenance function defined IEEE802.3ah
4) Support the remote upgrade and download
5) Support to save configured parameters if power down
6) Support to configure the work mode at the user port
7) Support MDI-MDIX automatic-detection at the user port.
8) Support access authentication based on serial number
9) Support access authentication based on MAC address
10) Support 802.1Q VLAN
11) Support rich QinQ VLAN functions and IGMP Snooping
12) Support traffic rule to modify the related priority.
13) Support to restore the factory settings
14) Support the remote reset and reboot
15) Support dying gasp outage alarm
16) Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.
Packing details
| Neatural PACKING | 1 PCS/Box | 80Boxes/CTN | 48*43*38CM | 16.5KG/CTN |
| Optfocus PACKING | 1 PCS/Box | 90Boxes/CTN | 48*43*38CM | 18KG/CTN |
Related products
Certification
Company Profile
Exhibition Show
Payment
FAQ
1) Is there a minimum order quantity?
No any MOQ.
2) warranty
One year, other details or special requirements are available discussion.
3) How much charge voltage can reach?
Battery charging voltage should be 13.8V only high charging and low cutoff 10V.
4) If problems, how to solve?
We supply the remote control services for checking first, if not man-made problems, we provide the offical after sales service ( Details chat with us, different country we have different suitable policy.
5) Shipping cost ?
Let's discuss accordingly, we need your address( Here we are limited to post all the solutions upon different questions)
