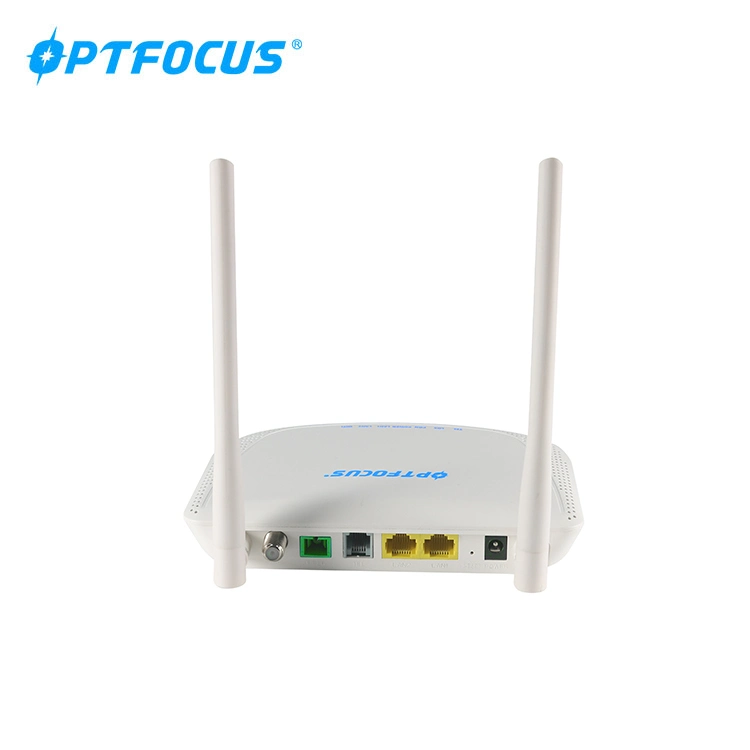

1GE+1FE Ethernet ports with Wifi VOIP WDM CATV XPON ONU for FTTH solution
OFSX622-CVW XPON(GPON and EPON dual mode) ONU. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTx, video surveillance and other requirements. It is based on mature GPON and EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah requirement. it can be used as GPON or EPON
1) In stock.
2) Shipping via express
3) No MOQ of sample
4)This is XPON ONU/ONT which means it fit with EPON/GPON OLT.
5) Some OLT appears propriatary protocol. that result in incompatible to ONU. (If you need sample or whole set of equipment, please chat with us about the solutions.)
6) Sample NO branded. We support OEM & ODM services
7) Connector: SC/APC
8) Power adaptor originally: EU.Standard (Two round plug). Other option, please contact us.
9) Packing: 12CTN/24piece, 48*43*38CM
|1 XPON interface,SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s(GPON), RX 1.244 Gbits/s rate and TX 1.244 Gbits/s(EPON) rate Fiber type:SC/UPC|
Optical power:0~4 dBm Sensitivity:-28 dBm safety: ONU authentication mechanism
|Wavelength(nm)||TX 1310nm,RX 1490/1550nm|
|Fiber connector||SC/UPC connector (SC / APC optional)|
|Down-link data interface||1*10/100Mbps and 1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface|
|Indicator LED||8 pcs|
|DC supply interface||input+12V 1A|
5DBI Gain ,Frequency:2.4G
|rate||300Mbps PHY rate|
Voice technical feature
|Voltage and Current Monitoring||The XPON ONU continuously monitors the TIP, RING, and battery voltages and currents via an on-chip Monitor ADC|
CATV Tech. feature
Optical input range
Optical return loss
+/- 1 DB
RF output level
AGC control range
RF Output return loss
Definition of indicator LED
|PWR||green||ON:successfully connect with power OFF:fail to connect with power|
|PON||green||ON:ONU port Link link correctly Flicker: PON registering|
OFF:ONU ports link link faulty
|LAN||green||ON: Link up correctly Flicker: data is transmitting OFF: link down faulty|
|TEL||green||ON: Register success|
|WIFI||green||ON: WIFI is running OFF:WIFI startup fail|
|LOS||red||Flicker: fail to connect with PON port|
OFF: detected fiber to input
|CATV||Green||Input optical power:0~ -15DBm|
|Red||Input optical power:≥0DBm,or -15DBm≥|
- Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.
- Completely compatible with GPON international standard IEEE802.3ah/802.3-2005
- Support China Telecom GPON CTC3.1 standard and expand OAM
- Support triple churning encryption request
- Support DBA reporting mechanism request
- Support OAM (Link, Test, Loop back)maintenance function defined IEEE802.3ah
- Support the remote upgrade and download
- Support status detection and fault report
- Support to save configured parameters if power down
- Support to configure the work mode at the user port
- Support MDI-MDIX automatic-detection at the user port.
- Support data encryption and decryption
- Support access authentication based on serial number
- Support access authentication based on MAC address
- Support 802.1Q VLAN
- Support rich QinQ VLAN functions and IGMP Snooping
- Support traffic rule to modify the related priority.
- Support IEEE802.11n 2T2R WiFi function
- Support to restore the factory settings
- Support the remote reset and reboot
- Support dying gasp outage alarm
- Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.
|Product Model||Product description|
|OFSX611, OFSE611, OFSG611||1GE EPON/GPON/XPON (dual mode), 12V Power supply|
|OFSE622-W, OFSG622-W, OFSX622-W||1GE+1FE+WIFI EPON/GPON/XPON, BOSA Type, 12V Power supply|
|OFSE622-VW,OFSG622-VW, OFSX622-VW||1GE+1FE+Voice+WIFI EPON/GPON/XPON, BOSA Type, 12V Power supply|
|OFSE622-CW,OFSG622-CW, OFSX622-CW||1GE+1FE+CATV+WIFI EPON/GPON/XPON, BOSA Type, 12V Power supply|
|OFSE622-CVW,OFSG622-CVW, OFSX622-CVW||1GE+1FE+Voice+CATV+WIFI EPON/GPON/XPON, BOSA Type, 12V Power supply|
1) Is there a minimum order quantity?
One year, other details or special requirements are available discussion.
3) How much charge voltage can reach?
Battery charging voltage should be 12V
4) If problems, how to solve?
We supply the remote control services for checking first, if not man-made problems, we provide the offical after sales service ( Details chat with us, different country we have different suitable policy.
5) Shipping cost ?
Let's discuss accordingly, we need your address( Here we are limited to post all the solutions upon different questions)
